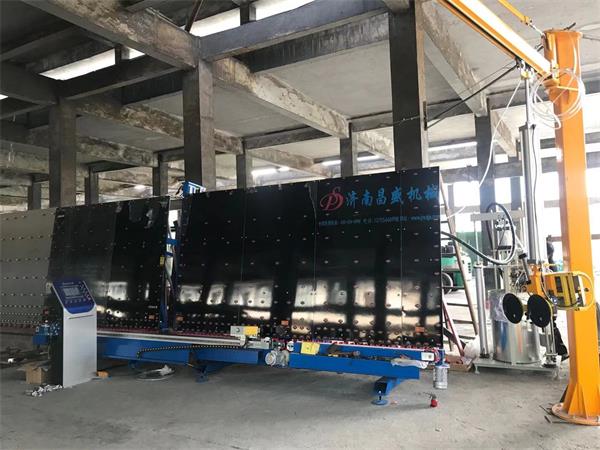

當前位置：鋁條丁基膠涂布機有什么特點！
時間：2023-03-22 來源：http://www.hyjsrq88.com/ 發布人：昌盛機械
1、丁基膠涂布機為中空玻璃出產的必備設備，為半主動膠條涂布機，即人工持鋁距離框進行操作，將鋁距離框放在傳送帶上，人工持鋁距離框隨傳送帶運行，當鋁距離框經過傳感器時，傳送壓輪及打膠閥將按設定程序主動運行，即氣缸動作，壓輪壓下，壓送鋁距離框進行;待鋁距離框抵達打膠頭時開端打膠，將膠均勻地涂在鋁距離框上，當距離框另一側快要抵達壓輪時，壓輪抬起，離開打膠頭時，膠閥主動停止打膠。
1. The butyl adhesive coating machine is a necessary equipment for the production of insulating glass, which is a semi-active adhesive strip coating machine, that is, manually holding the aluminum distance frame for operation. The aluminum distance frame is placed on the conveyor belt, and the manual holding aluminum distance frame runs along with the conveyor belt. When the aluminum distance frame passes through the sensor, the conveying pressure wheel and the gluing valve will actively operate according to the set procedure, that is, the air cylinder acts, the pressure wheel presses down, and the aluminum distance frame is pressed; Start gluing when the aluminum distance frame reaches the gluing head, and evenly apply glue to the aluminum distance frame. When the other side of the distance frame is about to reach the pressing wheel, the pressing wheel is lifted, and when it leaves the gluing head, the glue valve actively stops gluing.
2、選用人機界面顯示屏便于操作，體系以PLC為操控中心，由光電傳感PLC機、中文操控終端、PLC主動轉換。按鈕開關等電器元件組成，功用強大、作業牢靠、操作簡單主動化程度較高。
2. The man-machine interface display screen is selected for easy operation. The system takes PLC as the control center, and is actively converted by photoelectric sensing PLC machine, Chinese control terminal, and PLC. It is composed of electrical components such as button switches, with powerful functions, reliable operation, simple operation, and high degree of initiative.
3、鋁條丁基膠涂布機選用目前國內較大缸徑?195膠缸，裝膠容量大，較大出眾確保連續出產時刻，進步作業效率。選用較氣動增壓體系，充沛確保膠頭出膠壓力衡定，避免了打膠粗細不勻，斷膠現象。選用4段變頻調速，較大出眾照料操作工人熟練程度，進步作業效率。
3. The aluminum strip butyl adhesive coating machine is currently selected with a larger cylinder diameter in China? 195 glue cylinder, with large glue loading capacity, ensures continuous production time and improves operation efficiency with large limits. The use of a more advanced pneumatic pressurization system fully ensures a constant discharge pressure from the glue head, avoiding uneven thickness and broken glue. Select 4-stage variable frequency speed regulation to greatly limit the proficiency of operators and improve work efficiency.
4、鋁條丁基膠涂布機主要功能有：
4. The main functions of the aluminum strip butyl adhesive coating machine are:
1恣意設置主動加熱時刻;
Set the active heating time arbitrarily;
2無膠報警提示;
2. No glue alarm prompt;
3膠頭、膠缸主動加熱功用;
3. Active heating function of rubber head and rubber cylinder;
4主動待機功用：減少工人值守時刻，進步作業效率;
Active standby function: reduce worker duty hours and improve work efficiency;
5在手動狀態下可打圓弧。
Arc can be made in manual mode.
5、選用不銹鋼作業臺面，充沛確保設備外觀及整理方便。
5. The stainless steel worktop is selected to fully ensure the appearance and convenience of the equipment.
技術參數：
Technical parameters:
電源：380v
Power supply: 380v
總功率：2.2kw
Total power: 2.2kw
運送速度：10-30m/min
Transportation speed: 10-30m/min
打膠溫度：100-140
Gluing temperature: 100-140
氣動壓力：0.5—0.8mpa
Pneumatic pressure: 0.5-0.8 mpa
擠膠壓力：8—15mpa
Extrusion pressure: 8-15 mpa
膠頭可調范圍：6—20mm
Adjustable range of rubber head: 6-20mm
外形尺寸：3300x700x1200mm
Overall dimension: 3300x700x1200mm
